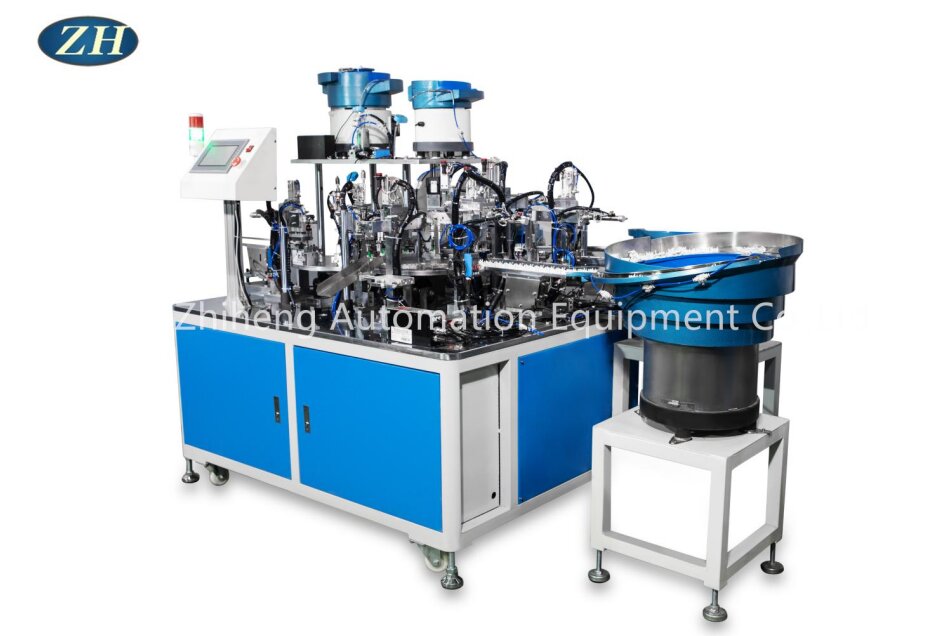

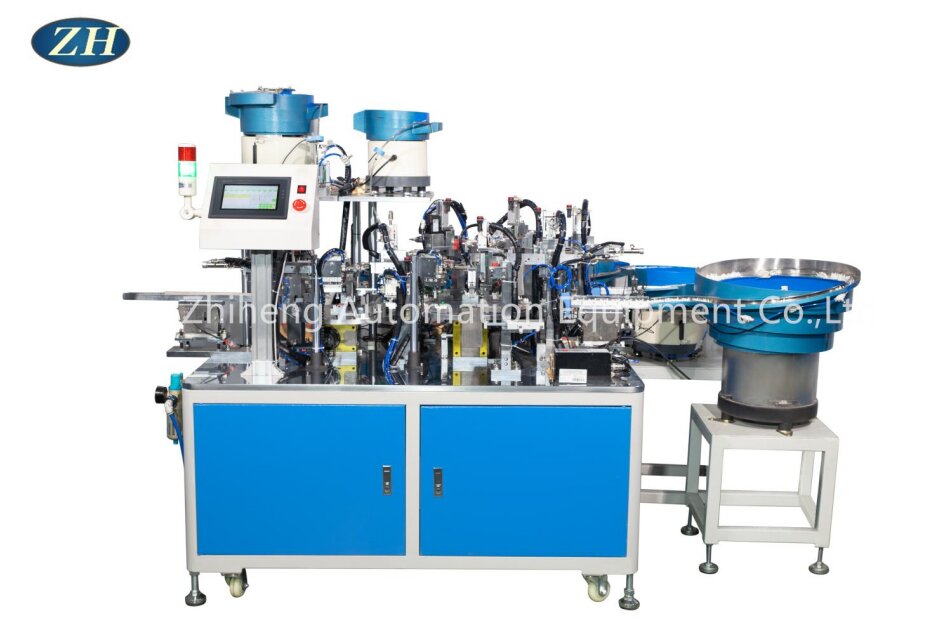

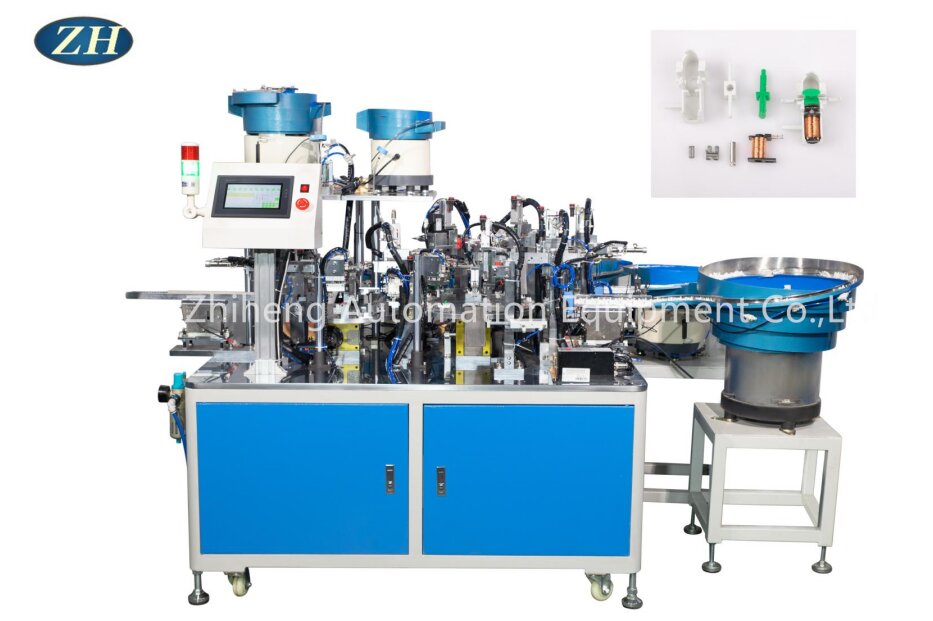

Push-Button Assembly Machine Consistency

Introduction of Push-Button Assembly Machine Consistency:

High quality Push-Button Assembly Machine Consistency is offered by China manufacturers Yuyao Zhiheng. Buy Push-Button Assembly Machine Consistency which is of high quality directly with low price.In the assembly process, through strict quality control and inspection mechanism, it can ensure that the assembly quality of each button component meets the established standards and requirements. Whether it is appearance quality, functional performance or durability, it can maintain a high degree of consistency. This consistency of quality makes the assembled button products have higher reliability and durability, thus improving the market competitiveness of the product.

Parameter (Specification) of Push-Button Assembly Machine Consistency:

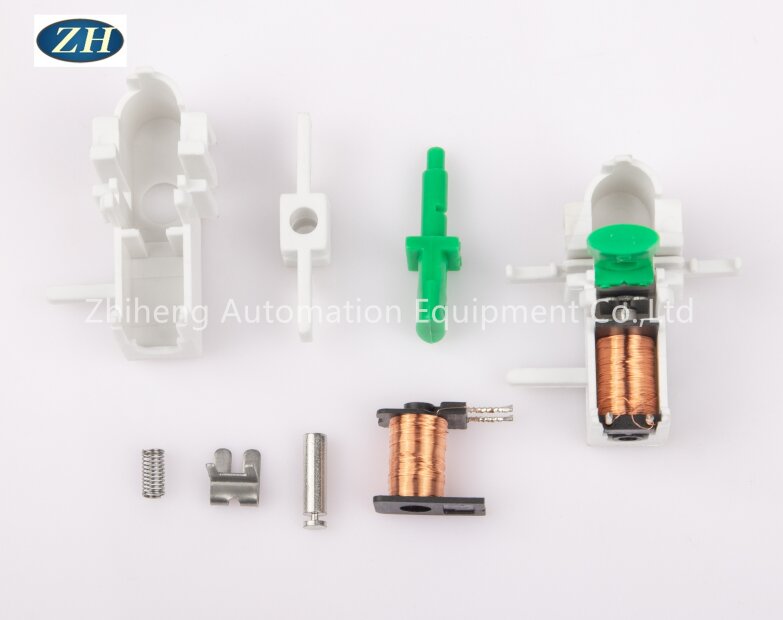

1. Automatic feeding base button

2. Detection of base button

3.Automatic feeding plastic pin

4.Automatic feeding Stainless steel plate

5.Automatic assembly the plastic pin and Stainless steel plate

6.Automatic feeding the plastic pin and stainless steel plate assemblies

7.Detection of the plastic pin and stainless steel plate assemblies

8.Automatic feeding reset button

9.Detection of reset button

10.Manual feeding the coil

11.Put the spring into the coil

12.Insert the core into the coil

13.Detection of the spring and core

14.Automatically mounts the assembled coil into the button base

15.CCD check the installation

16.Automatic blanking of good and bad products

Specification,

Power supply:AC 220V /50HZ

Air  pressure：above 0.6 MPa

Yield:1500-1800PCS/hour
